In precision manufacturing, microns decide pass or fail—choose wisely.
You’re not buying the Best Heavy Duty Fixed Jaw for features. You need reliability, repeatability, and precision in every operation.
What You Get
- Reduced rework — fewer inspection surprises ensure quality consistency.
- Faster setups — save valuable time with efficient clamping.
- Consistent batches — achieve uniform results with precision.
Key Specs at a Glance
- A: 50, 72, 100 mm
- B: 44, 65, 70 mm
- C: Configurable
- Orientation: Flat/upright capability
- Weight: 0.5 to 2.6 kg
Advantages
- Durable materials — minimizes wear and extends tool life.
- Precision machining — reduces drift and maintains accuracy.
- Versatile setup options — easy multi-process transfer reduces re-indicating.

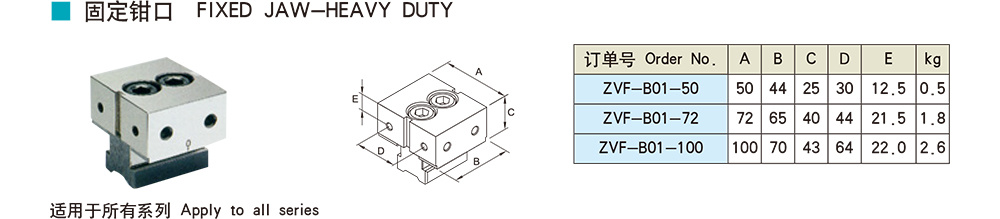

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|
| ZVF–B01–50 | 50 | 44 | 25 | 30 | 12.5 | 0.5 |
| ZVF–B01–72 | 72 | 65 | 40 | 44 | 21.5 | 1.8 |
| ZVF–B01–100 | 100 | 70 | 43 | 64 | 22.0 | 2.6 |
Applications
Choose Best Heavy Duty Fixed Jaw when your work looks like this:
- Grinding
- EDM
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B): Consider your clamping needs and material dimensions.
- Max opening (Smax): Available upon request for specific dimensions.
- Overall length (L) & weight: Ensure compatibility with your setup.
Not sure? Tell us your requirements, and we’ll help find the perfect fit.
