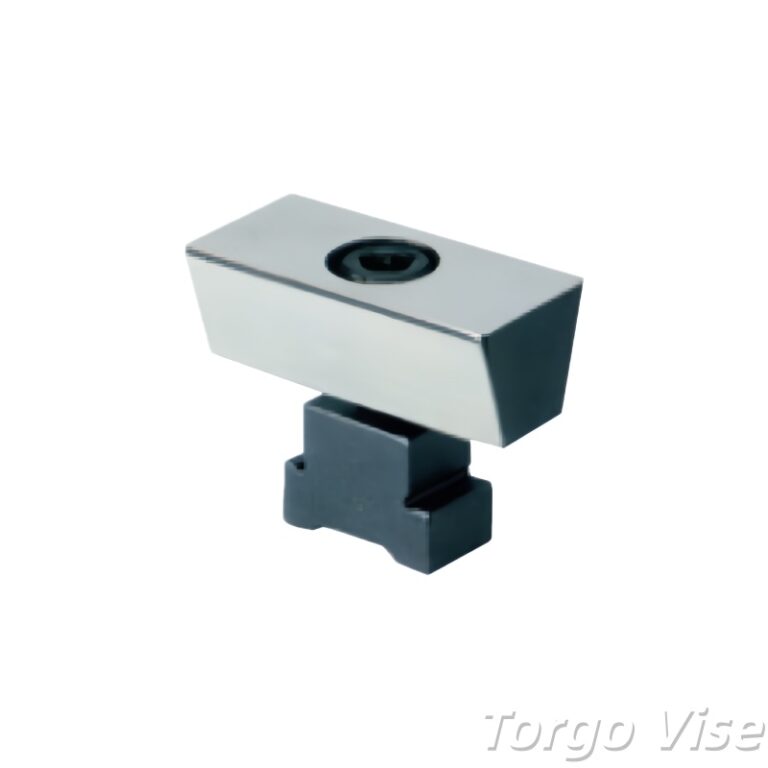

When microns decide pass or fail, precision is your lifeline. You’re not buying a Movable Wedge for features—you’re investing in reliability to enhance rework reduction and batch consistency.
What You Get
- Precision craftsmanship — smoother repeat setups.
- Robust design — fewer inspection surprises.
- Consistent alignment — more consistent batches.
Key Specs at a Glance
- Model Number: Available upon request
- Material: High-quality steel
- Orientation Capability: Flat, upright
- Durability: Available upon request
- Clamping Force: Configurable
- Weight: 0.2 kg to 1.3 kg
Advantages
- High durability material — minimizes wear and drift.
- Stable design — reduces need for re-indicating.
- Flexible configuration — ensures multi-process transfer efficiency.

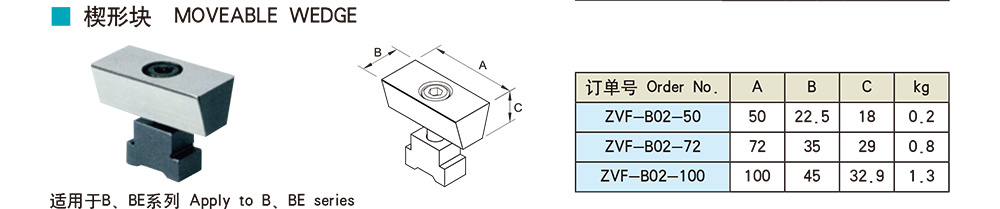

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | A | B | C | kg |
|---|---|---|---|---|
| ZVF–B02–50 | 50 | 22.5 | 18 | 0.2 |
| ZVF–B02–72 | 72 | 35 | 29 | 0.8 |
| ZVF–B02–100 | 100 | 45 | 32.9 | 1.3 |
Applications
Choose Precision Movable Wedge when your work looks like this:
- Grinding
- EDM
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B) — defines your clamping capacity.
- Max opening (Smax) — key for larger setups.
- Overall length (L) & weight — ensures stability and ease of integration.
Not sure? Tell us your specs for a personalized recommendation.
