Microns determine pass or fail — precision is non-negotiable.
You’re not buying a vise for its features; you’re investing in flawless production outcomes.
What You Get
- Enhanced precision — fewer inspection surprises and more predictable quality.
- Quick setups — reduce downtime for increased operational efficiency.
- Consistent clamping — maintain batch uniformity across production runs.
Key Specs at a Glance
- Jaw Width (B): 100 to 300 mm — diverse model choices.
- Max Opening (Smax): 100 to 800 mm — configurable per requirement.
- Overall Length (L): 270 to 1135 mm — fits various machines.
- Clamping Force: 3000 to 12000 Kg — reliable securing power.
- Material: High-grade steel — robust and wear-resistant.
- Orientation: Horizontal, vertical, and side — adaptable positioning.
Advantages
- Durable material — prolongs life, reducing re-indicating needs.
- Adjustable orientation — minimizes process drift across applications.
- High clamping force — secures workpieces firmly, less wear over time.

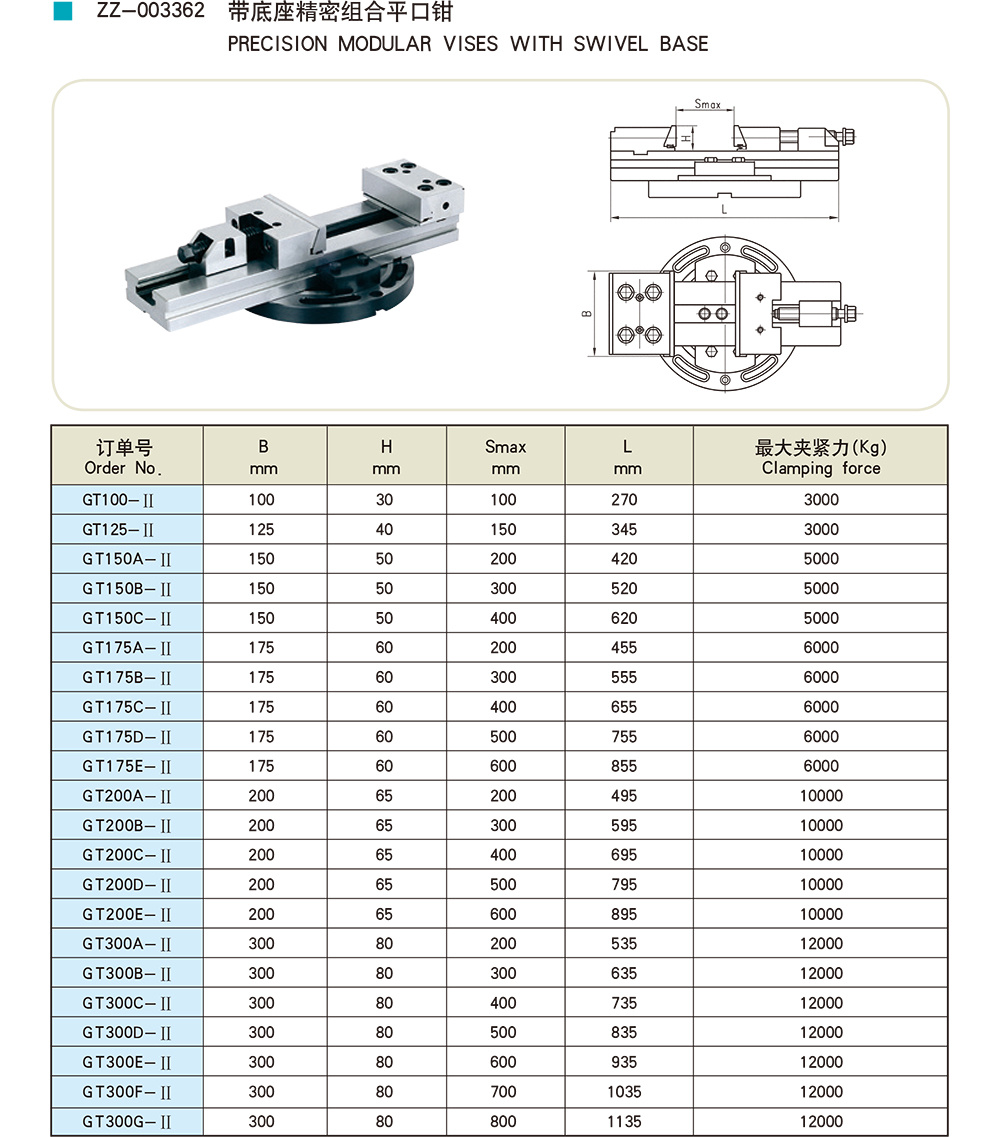

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | B | H | Smax | L | Clamping force (Kg) |
|---|---|---|---|---|---|
| GT100—II | 100 | 30 | 100 | 270 | 3000 |
| GT200—II | 200 | 65 | 500 | 795 | 10000 |
| GT300—II | 300 | 80 | 800 | 1135 | 12000 |
Applications
Choose Precision Vises with Swivel Base when your work looks like this:
- Grinding
- EDM
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B) — choose based on workpiece size constraints.
- Max opening (Smax) — ensure it matches your maximum workpiece needs.
- Overall length (L) & weight — align with machine capacity.
Not sure? Tell us your requirements — we’ll recommend the perfect fit.
