In precision machining, microns decide success or failure.

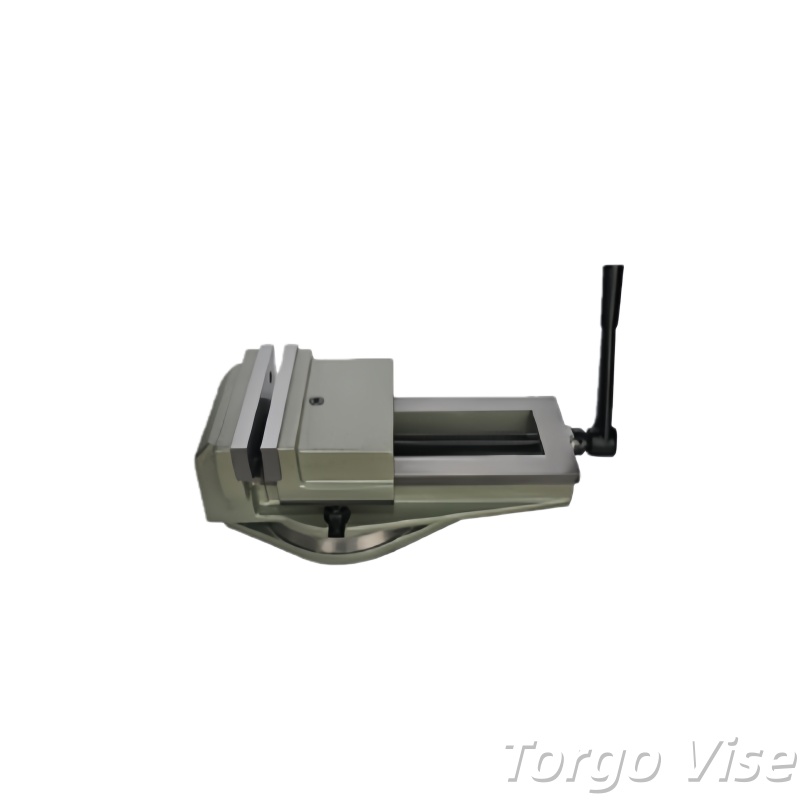

You’re not buying the Precision Q13 Series Machine Vise for its features—you’re investing in repeatability and accuracy.
What You Get
- Fewer inspection surprises — Avoid rework with consistent precision.
- Faster repeat setups — Minimize downtime and boost efficiency.
- Consistent batches — Deliver precision across all operations.
Key Specs at a Glance
- Jaw width: 135mm-320mm
- Jaw opening: 170mm-360mm
- Height of jaw: 36mm-81mm
- Parallelism: <0.025mm/100mm
- Orientation: Flat and side holding
- Packing size: Available upon request
Advantages
- High-quality cast iron — Reduces wear and extends tool life.
- Exceptional stability — Minimizes drift during operations.
- Quick clamping — Decreases need for constant re-indicating.
Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | Width of Jaw | Height of Jaw | Opening | Weight |
|---|---|---|---|---|
| Q13136 | 135 | 36 | 170 | 17/16 |
| Q13160 | 160 | 54 | 280 | 29/27 |
| Q13200 | 200 | 64 | 280 | 38/37 |
| Q13250 | 250 | 64 | 360 | 56/54 |
| Q13320 | 320 | 81 | 360 | 81/79 |
Applications
Choose the Precision Q13 Series when your work looks like this:
- Milling
- Drilling
- Grinding
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B) — Ensure coverage for your specific tasks.
- Max opening (Smax) — Consider the largest workpiece dimensions.
- Overall length (L) & weight — Match your equipment capacity.
Not sure? Tell us your requirements, and we’ll guide you.
