Microns decide pass/fail — precision that doesn’t cut corners.
You’re not buying a vise for features; you’re investing in accuracy that eliminates rework and streamlines your workflow.
What You Get
- High stability — reduces inspection surprises.
- Quick dual clamping — speeds up repeat setups.
- Reliable precision — ensures consistent batches every time.

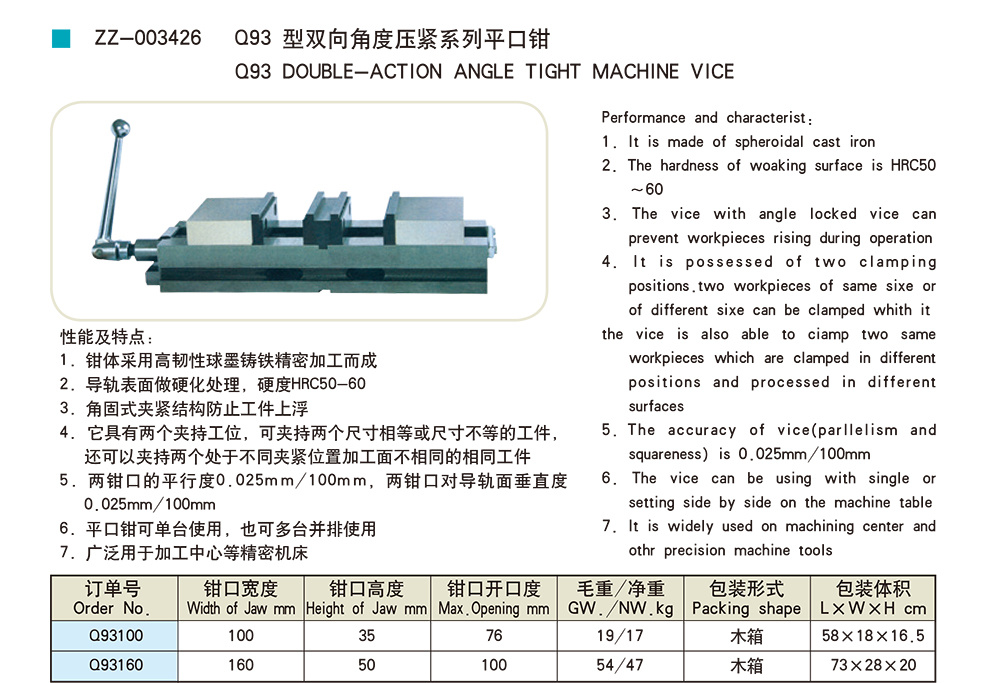

Key Specs at a Glance (Features)
- Parallelism and squareness: 0.025mm/100mm.
- Constructed from spheroidal cast iron.
- Two clamping positions for versatile setups.
- Orientation: flat and upright.
- Durability: Hardness HRC50-60.
- Weight and dimensions available upon request.
Advantages
- Durable material — minimizes wear during high-volume production.
- Dual positions — cuts down repositioning, enhancing workflow.
- Precision alignment — reduces need for re-indicating across jobs.
Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | Jaw Width | Opening | Length | Weight |
|---|---|---|---|---|
| Q93100 | 100 | 35 | 76 | 19/17 |
| Q93160 | 160 | 54 | 120 | 54/47 |
Applications
Choose Best Precision Angle Vice when your work looks like this:
- Grinding
- EDM
- Inspection
- CNC machining
How to Pick the Right Model (Fast)
- Jaw width (B) — choose based on clamping needs.
- Max opening (Smax) — ensure it fits your workpiece dimensions.
- Overall length (L) & weight — consider the fit for your machine setup.
Not sure? Tell us what you need — we’re here to help.
