In precision machining, microns decide pass or fail — every detail matters. You’re not buying precision tool vises just for features; you’re investing in outcomes: reduced rework, faster setups, increased batch consistency.
What You Get
- Fewer inspection surprises — ensures exact alignment every time.
- Faster repeat setups — step-and-repeat processes done quicker.
- Consistent batches — reliable results across multiple jobs.
Key Specs at a Glance
- B: 26–150 mm
- H: 9.15–50 mm
- H1: 29–100 mm
- Smax: 22–150 mm
- L: 65.4–280 mm
- Weight: 0.5–24 kg
- Configurable orientation capabilities
Advantages
- Wear-resistant construction — prolongs tool life even in demanding conditions.
- High parallelism — prevents drift, ensuring precise machining tolerance.
- Multi-process transfer — seamless movement without re-indicating parts.

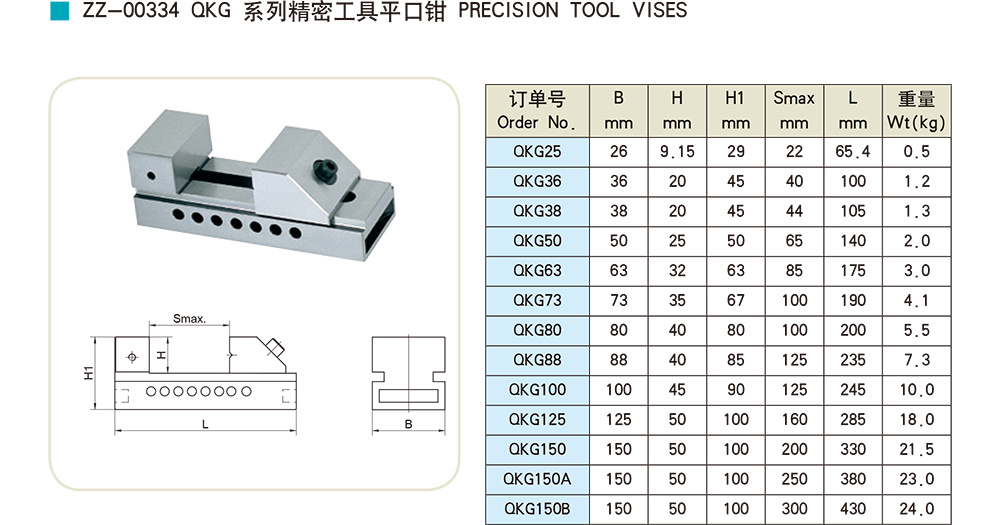

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | B | H | H1 | Smax | L | Weight |
|---|---|---|---|---|---|---|
| QKG25 | 26 | 9.15 | 29 | 22 | 65.4 | 0.5 |
| QKG36 | 36 | 20 | 45 | 40 | 100 | 1.2 |
| QKG38 | 38 | 20 | 45 | 44 | 105 | 1.3 |
| QKG50 | 50 | 25 | 50 | 65 | 140 | 2.0 |
| QKG63 | 63 | 32 | 63 | 85 | 175 | 3.0 |
| QKG73 | 73 | 35 | 67 | 100 | 190 | 4.1 |
| QKG80 | 80 | 40 | 80 | 100 | 200 | 5.5 |
| QKG88 | 88 | 40 | 85 | 125 | 235 | 7.3 |
| QKG100 | 100 | 45 | 95 | 125 | 245 | 10.0 |
| QKG125 | 125 | 50 | 100 | 150 | 265 | 18.0 |
| QKG150 | 150 | 50 | 100 | 150 | 280 | 21.5 |
| QKG150A | 150 | 50 | 100 | 230 | 280 | 23.0 |
| QKG150B | 150 | 50 | 100 | 234 | 280 | 24.0 |
Applications
Choose Precision Tool Vises when your work looks like this:
- Grinding
- EDM
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B) — choose based on the workpiece size requirements.
- Max opening (Smax) — ensure it covers the largest parts you’ll machine.
- Overall length (L) & weight — matches your machine capacity and handling preference.
Not sure? Tell us the details of your application, and we’ll recommend the best model.
