Microns decide pass/fail — achieve precision every time.

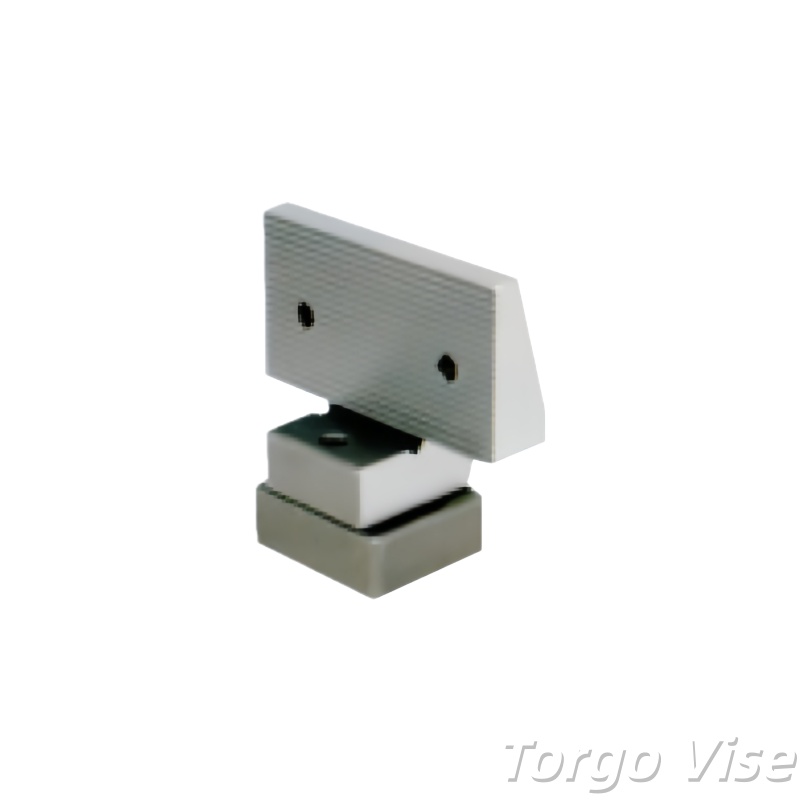

You’re not buying this Precision Serrated Moveable Jaw for features; you’re investing in reliability and consistent output.
What You Get
- Repeatability — fewer inspection surprises save time.
- Speed — faster setups enhance productivity.
- Consistency — better batch uniformity boosts quality.
Key Specs at a Glance
- A: 50–100 mm options available.
- B: Confirmed as 12–48 mm.
- C: Available upon request
- D: Configurable
- E: Available upon request
- Stable in flat and upright orientations.
Advantages
- Durable steel construction — resists wear.
- Precise clamping — reduces drift and re-indicating.
- Multi-orientation holding — adapts to complex tasks.

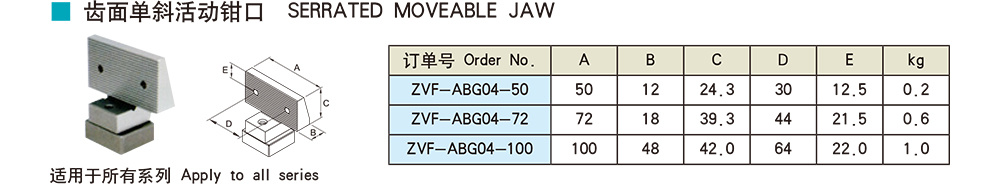

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | A | B | C | D | E | Weight |
|---|---|---|---|---|---|---|
| ZVF-ABG04-50 | 50 | 12 | 24.3 | 30 | 12.5 | 0.2 |
| ZVF-ABG04-72 | 72 | 18 | 39.3 | 44 | 21.5 | 0.6 |
| ZVF-ABG04-100 | 100 | 48 | 42.0 | 64 | 22.0 | 1.0 |
Applications
Choose Precision Serrated Moveable Jaw when your work looks like this:
- Grinding
- EDM
- Inspection
How to Pick the Right Model (Fast)
- Jaw width (B) — consider your machine’s needs.
- Max opening (Smax) — match to part size.
- Overall length (L) & weight — check machine fit and handling.
Not sure? Tell us what you need and we’ll guide you to the best option.
