Every micron counts—decide your pass or fail.

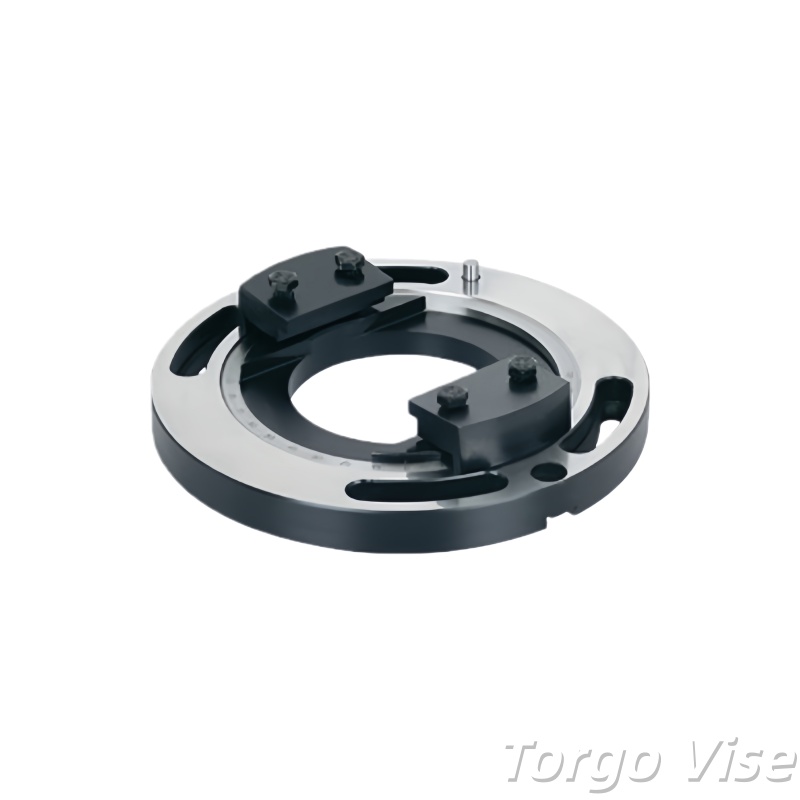

You’re not buying a Precision Swivel Base for its features but for the proven outcomes it delivers. Minimize rework and maximize batch consistency with every setup.
What You Get
- Fewer inspection surprises — achieve precision with reduced rework.
- Faster repeat setups — enhance your production speed.
- More consistent batches — maintain quality control effortlessly.
Key Specs at a Glance
- A: 180 to 400 mm
- B: 20 to 38 mm
- C: 43.5 to 78 mm
- D: 75 to 195 mm
- Suitable Visions: Configurable
- Orientation: Flat and upright positioning
Advantages
- High-grade steel — ensures durability, reducing wear and tear.
- Precision machining — minimizes drift, maintaining consistent accuracy.
- Quick clamping — facilitates fast multi-process transfers and re-indication.

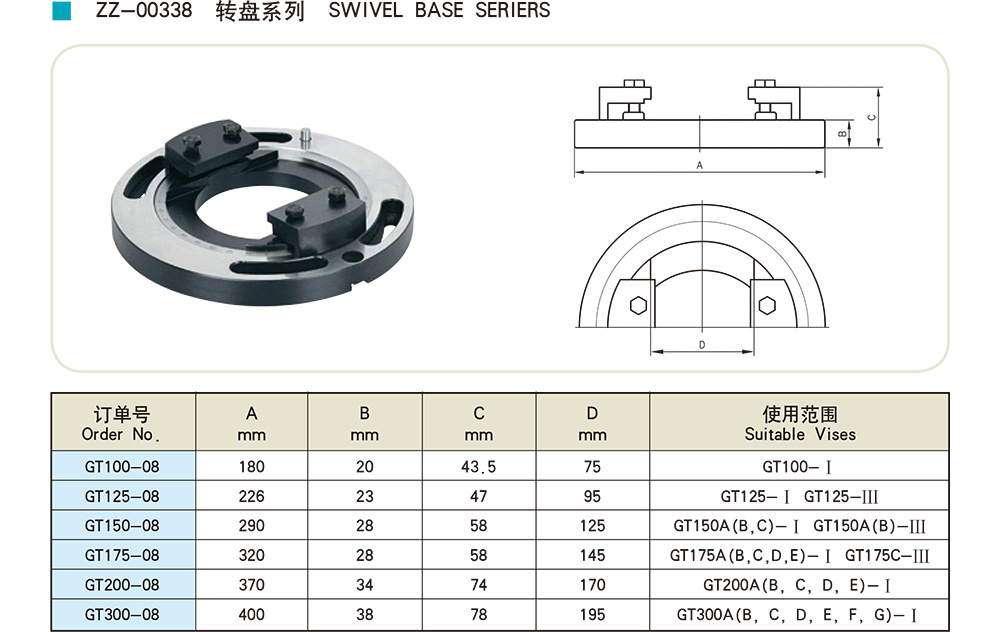

Models & Dimensions
All dimensions in mm. Weight in kg.
| Order No. | A | B | C | D | Suitable Vises |
|---|---|---|---|---|---|
| GT100–08 | 180 | 20 | 43.5 | 75 | GT100–I |
| GT125–08 | 226 | 23 | 47 | 95 | GT125–I, GT125–III |
| GT150–08 | 290 | 28 | 58 | 125 | GT150A(B, C)–I, GT150A(B)–III |
| GT175–08 | 320 | 28 | 58 | 145 | GT175A(B, C, D, E)–I, GT175C–III |
| GT200–08 | 370 | 34 | 74 | 170 | GT200A(B, C, D, E, F, G)–I |
| GT300–08 | 400 | 38 | 78 | 195 | GT300A(B, C, D, E, F, G)–I |
Applications
Choose Precision Swivel Base when your work looks like this:
- Grinding
- EDM
- Inspection
- CNC Machining
How to Pick the Right Model (Fast)
- Jaw width (B) — caters to narrow or broad workpieces.
- Max opening (Smax) — customizable for different tasks.
- Overall length (L) & weight — determine suitability for your machine.
Not sure? Tell us your specs—our experts are here to guide you.
